For distributing high volume of air in large spaces, creating a gentle air movement. The fan enables a perceived temperature to be cooler by 4o to 6o Celsius under standard conditions. Replaces multiple wall mounted fans, and reduces the operating costs upto 80% when compared with other fans.

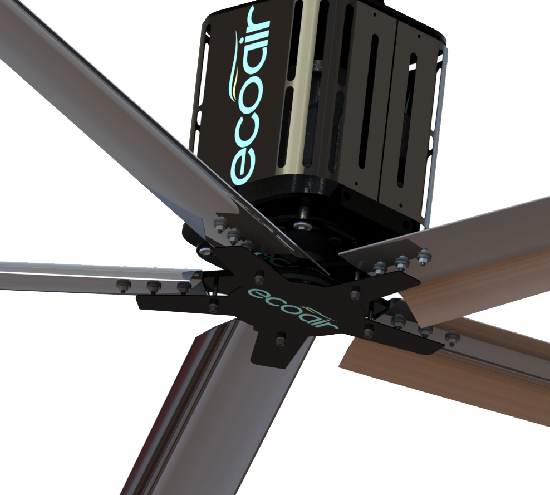

HVLS Gearless fans
- Maximum Coverage Area:
- Provides maximum air coverage for large spaces with minimal energy use.
- Higher Energy Efficiency:
- Delivers superior airflow with up to 80% energy savings.
- Variable speed and airflow control:
- Offers variable speed and precise airflow control for customized comfort.
Our best in class Promax HVLS fans are designed to making a difference!
Hot, humid, uncomfortable environment can impact productivity. Gentle air movement adds freshness and energy. It can reduce the fatigue and exhaustion felt by people. We understand the issues of such spaces. We hold the experience of designing and delivering products which are best in class. Every component in the product has been designed and manufactured for excellence. The German make IE3 motor, the heart of our every HVLS fan gives unmatched performance. Our tremendous research at the backend helped derive a specialized blade, with an angle enabling exceptional air distribution. We have enhanced the user experience with a control panel and a touch screen. Our fans are enabled with the VFD for speed control.
All in all our HVLS fan will rise above your expectations.
hvls fans easily replace multiple standard overhead or pedestal fans which consume higher energy. These fans are cost- effective cooling solution which enhance the comfort and productivity of occupants. In industries, railway stations, commercial complexes, temples/church/mosques, large areas, auditoriums, warehouses, airports, etc. these fans distribute the air with a gentle movement. Facilities under upgrade can often adopt to HVLS Fans.
They distribute air up to 29000 sq. ft. corner to corner. HVLS Fan reduces running cost upto 80% when compared to other fans & payback in 6 months.
JCB Air Tech’s HVLS fans are one of the best in class, energy efficient and require low maintenance. The German make motor make them highly efficient. While feature of speed control makes them very user friendly. The inbuilt safety standards in these fans are of level next. JCB’s forward looking approach have made the products future ready.
| MODEL NO | FAN SIZE (FEET) | MAX POWER (Kw) | SPEED (RPM) | AIR FLOW (CMH) | APPLICABLE AREA (Sq. Ft.) @ 0.5 Mts/Sec Air Velocity | Approx. Coverage Diameter in Mtrs |
|---|---|---|---|---|---|---|
| ECOPM7300 | 24 | 1.1 | 30.3 | 52 | 135 | 16,900 |
| ECOPM6000 | 20 | 1.1 | 38.5 | 68 | 126 | 10,500 |
| ECOPM4800 | 16 | 41 | 72 | 477,000 | 99 | 9,000 |
| ECOPM3600 | 12 | 0.3 | 49.5 | 86 | 72 | 6,800 |
| ECOPM3048 | 10 | 0.55 | 55 | 100 | 63 | 5,500 |
| ECOPM2400 | 8 | 0.55 | 55 | 100 | 54 | 4,500 |
- HVLS, Brushless Motor with High Torque at Low RPM.
- Exceptionally Low Maintenance- Service interval>1,00,000 Hours, with 24x7 operation continuously at full speed.
- One of The Worlds Most Energy Efcient Motors- 30% Lower Power Consumption, compared to normal HVLS Fans.
- Extremely Low Sound - No Gearbox, Direct drive less than 45 db @ 1mtr
- High Pole Motor-66 poles & 6 pole winding specially designed for HVLS fan application
- 5 Blade 6061T6 Aluminum Alloy blade - High Strength & Durability
- Primary and Secondary Safety features for Anti Fall Protection for all components of the Fan.
- 0% Derating of the fan performance over the life of the fan.
