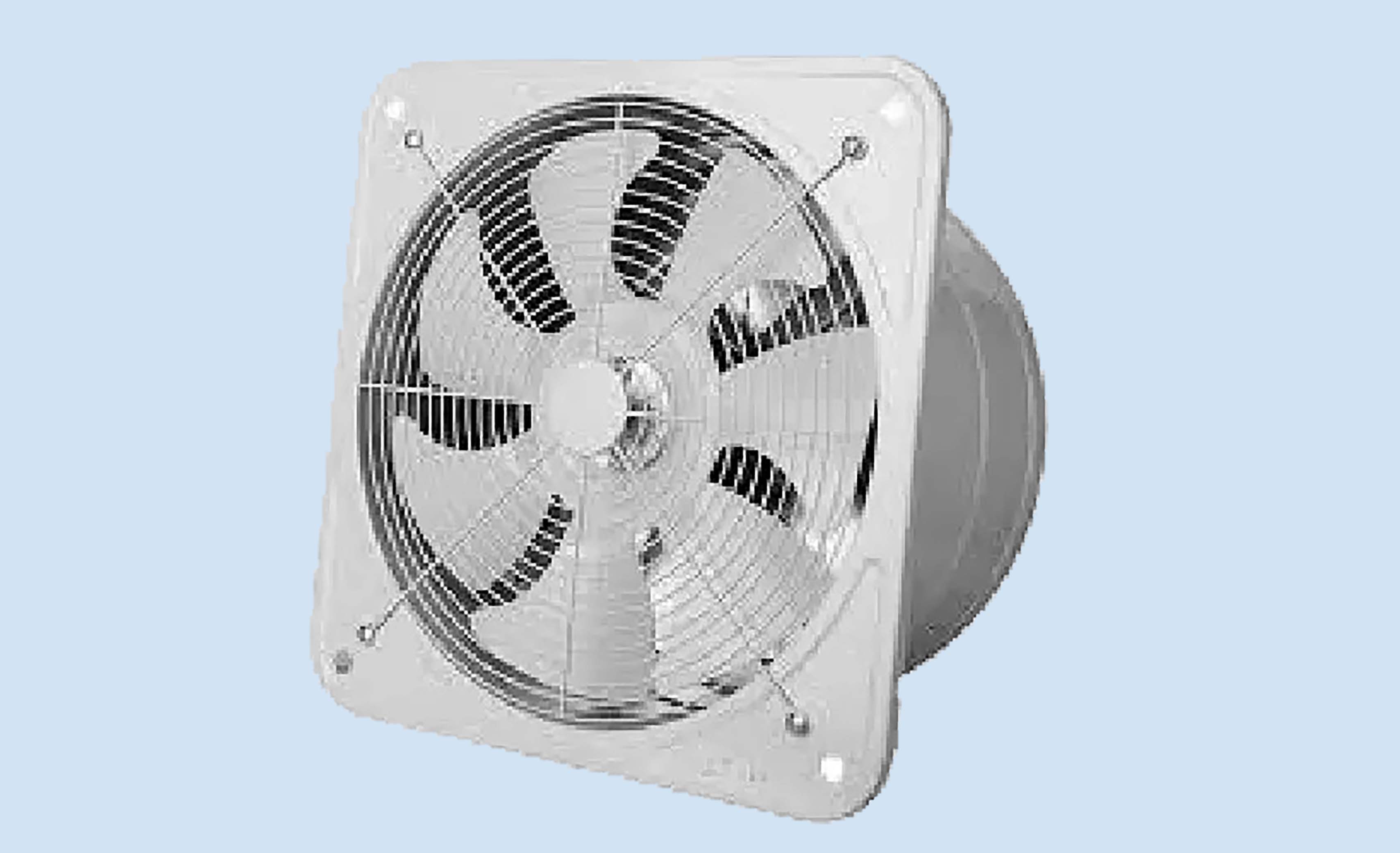

Industrial Exhaust fan With louvers designed to prevent duct ingress when fan is switched off. Direct drive fan without belt gives maintenance free operation and long life. These exhaust fans are having large air flow, low noise and are energy saving, small capacity motor running at low RPM & large air displacement.
- Direct Drive Fan without Belt for maintenance free operation
- Double Ball bearing and copper winding
- Aluminium Die Cast Impeller
- Aluminium blades and strong G.I. Body
- Gravitational Louvers
- Large Air Flow, Low Noise & Energy Saving.
| MODEL NO | POWER(KW) | VOL/FREQ (V/HZ) | AIRFLOW(CMH) | ROTATION(RPM) | SIZE (L*W*H) |
|---|---|---|---|---|---|
| EAEX600 | 0.25 | 415/50 | 17,000 | 720 | 800*400*800 |
| EAEX800 | 0.4 | 415/50 | 23,000 | 520 | 900*400*900 |
| EAEX1000 | 0.55 | 415/50 | 32,000 | 460 | 1,060*400*1,060 | EAEX1200 | 0.75 | 415/50 | 37,000 | 460 | 1,220*400*1,220 |
| EAEX1300 | 1.1 | 415/50 | 44,500 | 460 | 1,380*400*1,380 |
- Ventilation and Air changes
- Heat Extraction
- Best Suited as its wall mounted.
- Ventilate non flammable, low corrosive gases.
- Ideal replacement for roof ventilators.
