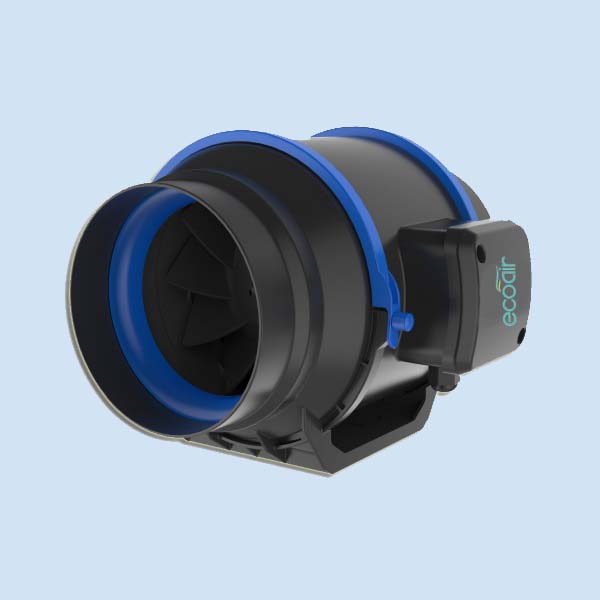

Mixed Flow Duct Ventilator has the advantages of low noise, large air flow and high static pressure. This design is suitable for most of the ventilation situations and can be used instead of axial fan or centrifugal fan. Moreover, the motor and impeller are located at the center of the structure which means you can easily install, remove or maintain them without adjusting the Ducting even in sealed space.
Overall and Installation Dimension
| MODEL NO | A | Φ B | C | D | E | F | G Long Hole |
H | H1 |
|---|---|---|---|---|---|---|---|---|---|
| EMFF100 | 300 | Φ100 | 100 | 214 | 62 | 60 | 7*5 | 182 | 95 |
| EMFF150 | 293 | Φ150 | 120 | 237 | 72 | 70 | 7*5 | 211 | 110 |
| EMFF200 | 304 | Φ200 | 140 | 258 | 78 | 85 | 8*6 | 235 | 124 |
| EMFF250 | 383 | Φ250 | 180 | 298 | 119 | 92 | 11*8 | 291 | 152 |
| EMFF315 | 413 | Φ315 | 220 | 364 | 127 | 140 | 11*8 | 359 | 189 |
Performance Table (Voltage 220V-240V/Frequency 50/60Hz)
| MODEL NO | POWER(W) | AIR VOLUME(M3/H) | STATIC PRESSURE(Pa) | SOUND LEVEL(dB) | DUCT SIZE Φ(mm) | NET WEIGHT(KG) | APPLICABLE AREA (m2) |
|---|---|---|---|---|---|---|---|
| EMFF100 | 28/25 | 200/150 | 180/130 | 30/25 | 100/125 | 1.8 | 8-16 |
| EMFF150 | 50/40 | 500/400 | 300/250 | 35/30 | 150/160 | 2.2 | 18-36 |
| EMFF200 | 70/60 | 850/700 | 350/280 | 50/45 | 200 | 3.1 | 34-76 |
| EMFF250 | 170/130 | 1500/1100 | 550/400 | 60/54 | 250 | 7.0 | 42-84 |
| EMFF315 | 320/230 | 2300/1800 | 700/500 | 66/61 | 315 | 9.7 | 60-120 |
- Duct Mounting Point
- Air inlet 1
- Air inlet 2
- Impeller
- Snap Joint
- Motor
- The Central Housing
- Terminal Box
- Wire Cover
- High strength PP plastic, light weight and durable. Double insulation.
- Mixed-ow impeller design, high pressure and large air ow, high efficient, low noise
- Special snap joints design, easy installation, perfect seal conditions, easy maintenance. Can be wisely used in ventilating meeting room, office, public space, hotel and residence.
