For distributing high volume of air in large spaces, creating a gentle air movement. The fan enables a perceived temperature to be cooler by 4 Degree to 6 Degree C. Single fan replaces multiple wall mounted fans, and reduces the operating costs up to 80%. PMSM HVLS fans distribute high volume of air with a gentle movement and are suited for Industries, Railway Stations, Commercial Complexes, Temples/Church/Mosques, Auditoriums, Warehouses, Airports, etc. These PMSM HVLS fans are extremely suitable for facilities planning an upgrade or a facelift. They are energy efficient, low on maintenance and deliver excellent performance

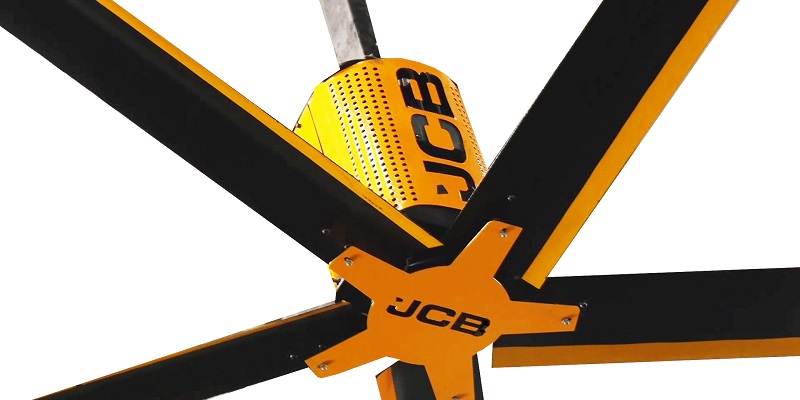

HVLS JCB Gearless fans
- Maximum Coverage Area:
- Provides maximum air coverage for large spaces with minimal energy use.
- Higher Energy Efficiency:
- Delivers superior airflow with up to 80% energy savings.
- Variable speed and airflow control:
- Offers variable speed and precise airflow control for customized comfort.
JCB AIR TECH PMSM HVLS FANS ARE DESIGNED TO MAKE A DIFFERENCE!
- EMF make PMSM motor from Germany
- Most efficient motor - consuming 30% less power compared to geared HVLS fan
- Zero Maintenance - service interval after 1, 00,000 working Hrs
- Control panel with & touch screen, makes it user friendly
- Schneider / Danfoss, make VFD for speed regulation and control the airflow
- Noise level less than 45 dB (direct drive gearless motor)
- 0% Derating of the fan performance over entire life of fan
BUILT TO LAST !
- Permanent Magnet Synchronous Motor (PMSM), gives high Torque at low speed.
- High Pole Motor (66 poles & 6 pole winding) specially designed for HVLS fan application.
- Superior components with high level of safety
- Anti fall safety systems provided for all major components
- High grade 6061 T6 Aluminum alloy for Aerofoil blades.
- GI wire rope with PVC coating
| MODEL NO | FAN SIZE (FEET) | MAX POWER (Kw) | HEIGHT FROM FLOOR MIN-MAX (METER) | ROTATION (RPM) | AIRFLOW (CFM) | APPLICABLE AREA (Sq.Ft.) |
|---|---|---|---|---|---|---|
| PROAIR 8DX | 8 | 0.55 | 5-6.5 | 100 | 87,000 | 4500 |
| PROAIR 12DX | 12 | 0.3 | 5-6.5 | 86 | 128700 | 6800 |
| PROAIR 16DX | 16 | 0.6 | 6.7.5 | 72 | 225000 | 8900 |
| PROAIR 20DX | 20 | 1.1 | 7-8.5 | 68 | 288000 | 10500 |
| PROAIR 24DX | 24 | 1.1 | 9-11.5 | 52 | 377000 | 16900 |
